Mobile device accessories extend functionality, enhance user experience, and enable new use cases for smartphones and tablets. As a CompTIA A+ technician, you'll regularly assist users with selecting, configuring, and troubleshooting these accessories. Understanding how styluses, headsets, speakers, and webcams work with mobile devices is essential for objective 1.2 of the CompTIA A+ 1101 exam.
Stylus Technology
A stylus is a pen-shaped input device that allows users to interact with touchscreens with greater precision than finger touch. Styluses are particularly valuable for note-taking, digital art, detailed editing, and navigating small interface elements.
Types of Styluses
Passive (Capacitive) Styluses are the simplest type, using a conductive rubber or mesh tip that mimics the electrical properties of a human finger. These styluses work with any capacitive touchscreen but offer limited precision and no pressure sensitivity. They require no batteries or pairing and are inexpensive, making them suitable for basic navigation and casual use.
Active Styluses contain electronic components and require power, typically from an internal battery. These styluses communicate directly with compatible devices to provide advanced features like pressure sensitivity, palm rejection, tilt detection, and programmable buttons. Active styluses offer significantly better precision and are designed for professional work like digital illustration, detailed note-taking, and technical drawing.
Electromagnetic Resonance (EMR) Styluses use technology developed by Wacom and other manufacturers. These styluses don't require batteries because they draw power from the electromagnetic field generated by the device's digitizer layer beneath the screen. EMR styluses offer excellent pressure sensitivity and precision while remaining lightweight and maintenance-free.

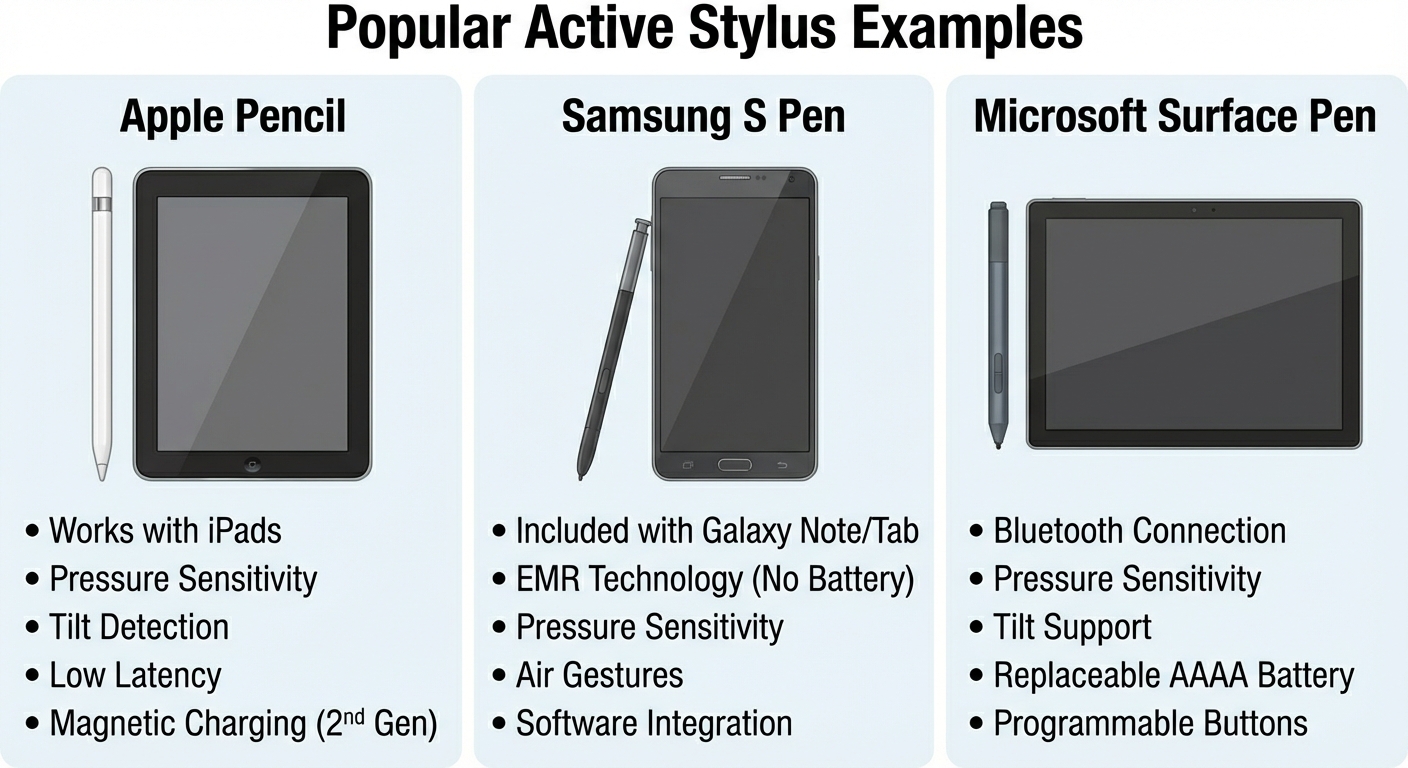

Popular Active Stylus Examples
Apple Pencil (1st and 2nd generation) works exclusively with compatible iPads. The first generation charges via Lightning connector, while the second generation attaches magnetically to the iPad for wireless charging and pairing. Apple Pencil offers pressure sensitivity, tilt detection, and virtually no latency, making it popular among artists and note-takers.
Samsung S Pen comes included with Galaxy Note series phones and certain Galaxy Tab tablets. The S Pen uses EMR technology and requires no charging. It offers pressure sensitivity, air gestures for remote control, and tight integration with Samsung's software for features like Screen Off Memo.
Microsoft Surface Pen uses Bluetooth to connect with Surface tablets and compatible Windows devices. It offers pressure sensitivity, tilt support, and a replaceable AAAA battery. The Surface Pen includes programmable buttons and attaches magnetically to compatible devices.
Stylus Features and Specifications
Pressure Sensitivity measures how many levels of pressure the stylus can detect, typically ranging from 1,024 to 8,192 levels. Higher pressure sensitivity allows for more nuanced control over line weight and opacity in drawing applications.
Palm Rejection prevents the screen from registering your palm or hand resting on the display while using the stylus. This feature requires coordination between the stylus and device software and is essential for natural writing and drawing.
Tilt Detection allows the stylus to recognize when it's held at an angle, enabling shading effects similar to using the side of a pencil in traditional drawing.
Latency refers to the delay between stylus movement and the appearance of the mark on screen. Modern active styluses typically achieve latency of 20 milliseconds or less, with premium options reaching 9ms or lower for a near-instantaneous feel.
Troubleshooting Stylus Issues
Stylus Not Responding: First, verify the stylus is compatible with the specific device model. For active styluses, check battery level and replace or recharge as needed. Ensure Bluetooth is enabled and the stylus is properly paired. Restart both the stylus and the device if connection issues persist.
Inaccurate Input or Calibration Problems: Clean the stylus tip and screen surface, as dirt and oils can interfere with accurate detection. Check for screen protectors, as some thick or low-quality protectors may interfere with stylus functionality. Some devices offer stylus calibration tools in settings that can improve accuracy.
Palm Rejection Not Working: Verify that palm rejection is enabled in device settings. Update the device operating system and stylus firmware, as manufacturers regularly improve palm rejection through software updates. Some apps have their own palm rejection settings that may need configuration.
Intermittent Connection: For Bluetooth styluses, remove the pairing and re-pair the device. Check for electromagnetic interference from other wireless devices. Verify the stylus firmware is current by checking the manufacturer's support website or app.
Headsets

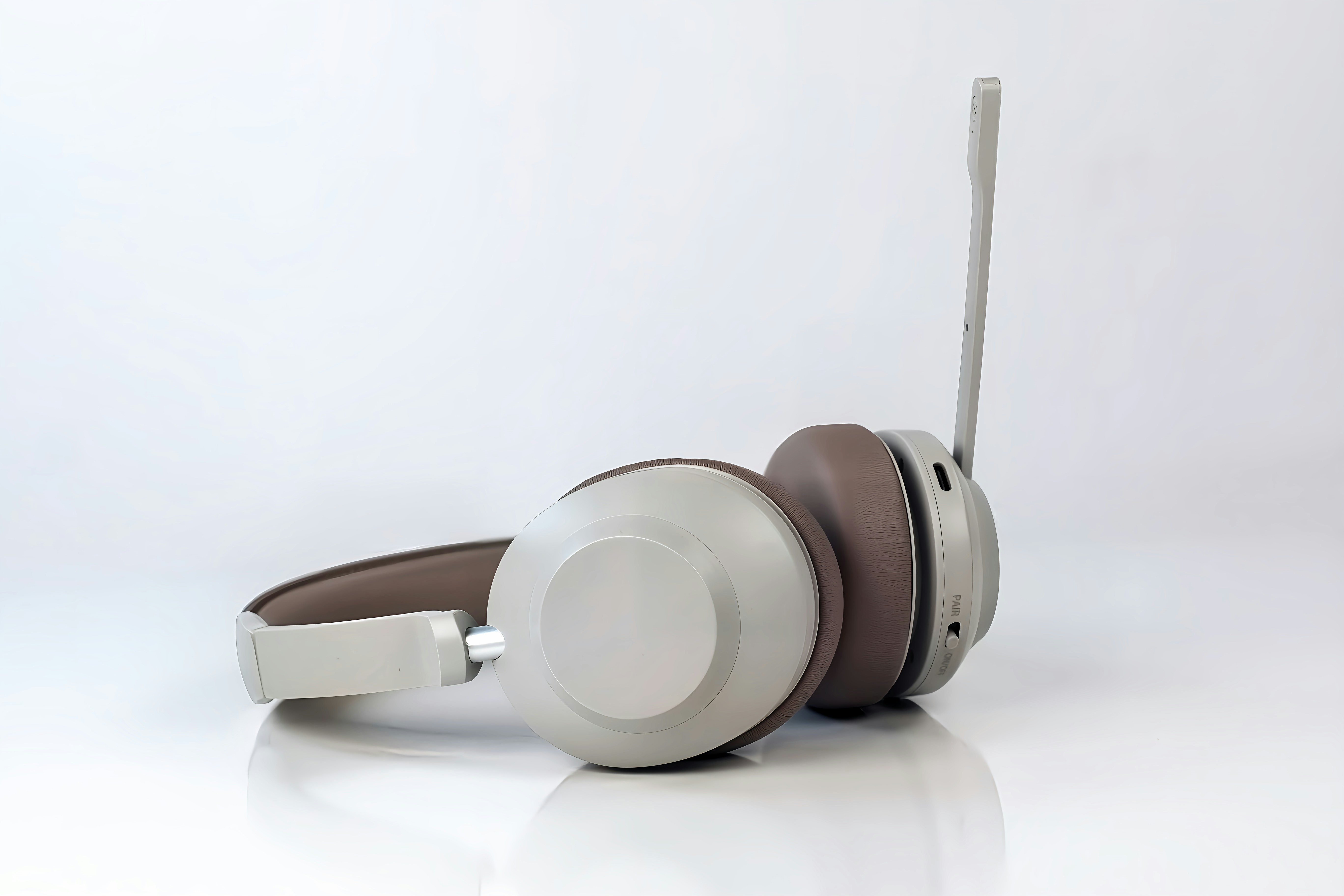

Headsets combine headphones with a microphone, enabling hands-free communication for phone calls, video conferences, voice commands, and gaming. Understanding the different connection types and features is crucial for helping users select appropriate headsets and resolving audio issues.
Connection Types
Wired Headsets with 3.5mm TRRS Connector use the traditional headphone jack, which carries both audio output and microphone input through a single connector. TRRS stands for Tip-Ring-Ring-Sleeve, the four contact points on the plug. Many modern smartphones have eliminated the 3.5mm jack, requiring users to use USB-C or Lightning adapters.
USB-C Headsets connect directly to the USB-C port found on modern Android devices and some tablets. These digital headsets often include their own digital-to-analog converter (DAC) and can provide higher audio quality than analog connections. They may also support additional features like active noise cancellation powered by the device.
Lightning Headsets connect to Apple devices through the Lightning port. Apple included Lightning EarPods with iPhones that lacked headphone jacks from iPhone 7 through iPhone 11 models. These headsets contain a DAC chip in the connector housing.
Wireless Bluetooth Headsets pair with mobile devices via Bluetooth, offering complete freedom from cables. They require internal batteries that need regular charging and may experience occasional connection issues or audio latency. Bluetooth headsets are the most popular option for modern mobile devices.
Bluetooth Audio Technology
Bluetooth Profiles: Headsets use specific Bluetooth profiles to communicate with devices. The most common profiles include Hands-Free Profile (HFP) for phone calls, Advanced Audio Distribution Profile (A2DP) for music streaming, and Audio/Video Remote Control Profile (AVRCP) for playback control.
Bluetooth Codecs: These compression algorithms determine audio quality and latency. Common codecs include SBC (Subband Coding, the baseline codec), AAC (Advanced Audio Coding, preferred by Apple devices), aptX and aptX HD (developed by Qualcomm for higher quality), and LDAC (Sony's high-resolution codec). Both the headset and mobile device must support the same codec to use it.
Bluetooth Versions: Newer Bluetooth versions offer improvements in range, power efficiency, and audio quality. Bluetooth 5.0 and later provide extended range and better performance in congested wireless environments. Bluetooth LE (Low Energy) Audio, introduced with Bluetooth 5.2, enables new features like audio sharing and improved battery life.
Headset Features
Active Noise Cancellation (ANC) uses microphones to detect ambient sound and generates inverse sound waves to cancel it out. This feature requires power and is only available on wireless or USB-powered headsets. ANC significantly improves the listening experience in noisy environments like airplanes or busy offices.
Transparency Mode (also called Ambient Mode) uses the headset's microphones to pipe environmental sounds back to the user, allowing awareness of surroundings while wearing the headset. This feature is useful for hearing announcements or brief conversations without removing the headset.
Multipoint Connectivity allows a Bluetooth headset to maintain connections with multiple devices simultaneously, making it easy to switch between a smartphone and tablet without manual re-pairing.
Voice Assistant Integration enables activation of Siri, Google Assistant, or other voice assistants through headset buttons or voice commands, providing hands-free device control.
Troubleshooting Headset Issues
No Audio Output or Microphone Not Working: Verify the headset is properly connected or paired. Check volume levels on both the device and headset. For Bluetooth headsets, ensure they're charged and powered on. Test with a different headset to determine if the issue is with the headset or device.
