When preparing for the CompTIA A+ Core 1 (220-1201) exam, you'll need to understand the differences between two devices that expand laptop connectivity: port replicators and docking stations. Objective 1.2 asks you to compare and contrast the accessories and ports of mobile devices, and these two frequently appear as distractor answers for one another. While they serve similar purposes, they have distinct characteristics that set them apart, and knowing exactly where one ends and the other begins is what earns you the point on exam day and saves you a support ticket in the field.
The Core Distinction
At the simplest level, a port replicator adds ports and a docking station builds a workstation. A port replicator is a passive (or lightly powered) expander that breaks a single connection out into more of the same kinds of ports the laptop already has. A docking station is a fuller connectivity solution that typically adds its own power supply, delivers charging back to the laptop, drives multiple high-resolution displays, and sometimes includes expansion bays. Every other difference between the two flows from that one idea: replicators are about quantity of ports, docks are about capability and integration.

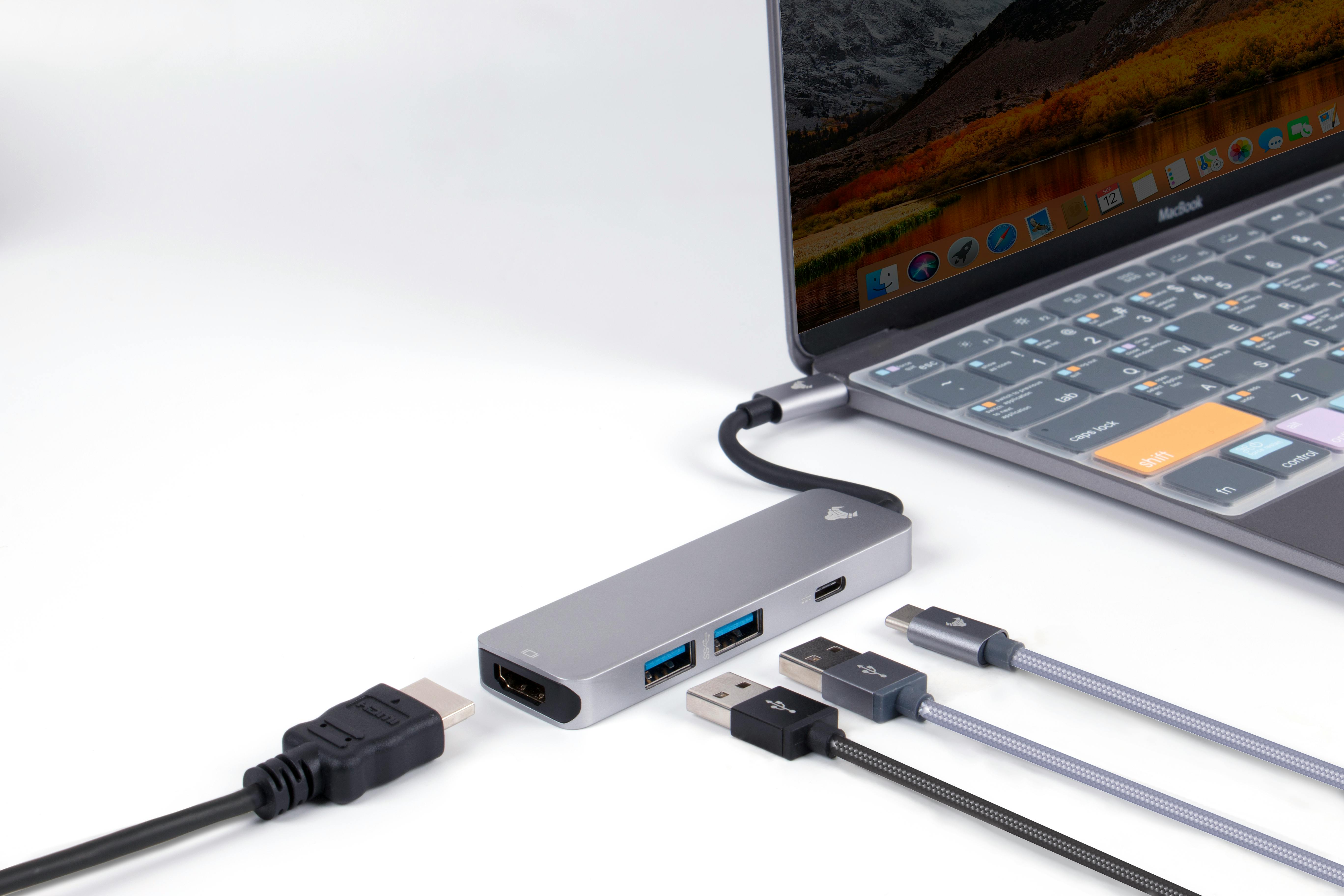

Port Replicators
A port replicator is a relatively simple device designed to add extra ports to a laptop. It typically connects through a single USB connection (often USB-C or USB-A) and provides additional connectivity options such as USB ports, video outputs (HDMI, DisplayPort, VGA), Ethernet, and audio jacks.
The key characteristics of port replicators include their universal compatibility across different laptop brands, their lower cost compared to docking stations, and their portability. Most port replicators don't require external power, drawing what they need from the laptop itself, though higher-powered models may include a power adapter. Because they rely on standard USB connections, they're limited by the bandwidth of that single connection, which can affect performance when using multiple peripherals simultaneously.
In practice, a bus-powered USB-C replicator has a fixed power budget to share among everything plugged into it. Plug in a bus-powered external hard drive, a webcam, and a phone that wants to fast-charge, and you can exceed what the laptop is willing to supply over that one cable. The symptoms are classic: a drive that spins up and then disconnects, a webcam that drops out under load, or a device that charges slowly or not at all. The fix is often as simple as choosing a self-powered (externally powered) replicator, but on the exam the reasoning matters more than the fix. Remember that a passive replicator does not add bandwidth or power; it only splits what the single host connection already provides.
Docking Stations
Docking stations offer a more comprehensive and robust solution for connecting a laptop to peripherals. They often use proprietary connectors designed for specific laptop brands or model lines, though universal USB-C/Thunderbolt docking stations have become increasingly common.
Docking stations typically provide more ports than port replicators and include additional features such as the ability to charge the laptop while docked, support for multiple high-resolution displays, and sometimes even expansion options like drive bays. They almost always require an external power source to deliver these capabilities. The result is a more seamless "desktop replacement" experience, allowing users to connect and disconnect their laptop with a single action.
Historically, a true docking station used a proprietary docking connector on the bottom or side edge of a business-class laptop, and the laptop physically seated onto a matching cradle with locating pins and a mechanical latch. Dell (E-Port), Lenovo (ThinkPad mechanical docks), and HP all shipped model-specific docks of this kind. The advantage was a single, rugged connection that carried power, video, USB, and network all at once, so an employee could drop the machine on the dock and instantly regain their dual monitors, wired keyboard, and Ethernet. The disadvantage was lock-in: a proprietary dock generally only fit the laptop family it was built for, so refreshing the fleet often meant replacing the docks too.
USB-C and Thunderbolt Docks
Modern docking has largely shifted away from proprietary cradles toward standardized cable-based docks that connect over a single USB-C or Thunderbolt port. This is the category the 220-1201 exam expects you to understand well, because two technologies do the heavy lifting inside that one small connector.
DisplayPort Alternate Mode (DP Alt Mode) lets a USB-C connection carry a native DisplayPort video signal directly over the port's high-speed lanes. This is how a plain USB-C laptop can drive an external monitor without any special software or driver. Because the pins are shared between USB data and video, there is a trade-off: dedicating more lanes to video can reduce the bandwidth left for USB data.
USB Power Delivery (USB PD) travels over the same USB-C cable and is what allows the dock to charge the laptop while it works. Standard USB-C Power Delivery supplies up to 100 watts (20V at 5A), which is enough to power and charge most ultrabooks and many mainstream laptops. The newer USB PD 3.1 Extended Power Range raises the ceiling to 240 watts, which is what makes single-cable charging realistic even for some larger or gaming-class notebooks. When a docked laptop reports that it is "plugged in, not charging" or is slowly draining while docked, a mismatch between the dock's power output and the laptop's demand is a leading suspect.
Thunderbolt 3 and Thunderbolt 4 use the USB-C connector but add much greater bandwidth, up to 40 Gbps, plus guaranteed capabilities. A Thunderbolt 4 dock can reliably drive dual 4K displays or a single 8K display, daisy-chain devices, and provide fast storage throughput, all over that one cable. USB4 shares the same 40 Gbps ceiling and connector. The catch for technicians is that the connector shape does not tell you the capability: a USB-C port may be USB 2.0-only, USB 3.2, DP Alt Mode capable, Thunderbolt, or any combination. Look for the Thunderbolt lightning-bolt icon or the laptop's documentation before assuming a dock will deliver full performance.
Universal (DisplayLink) vs. Native Docks
There is one more distinction that trips people up in the field: how the dock actually produces the video signal.
