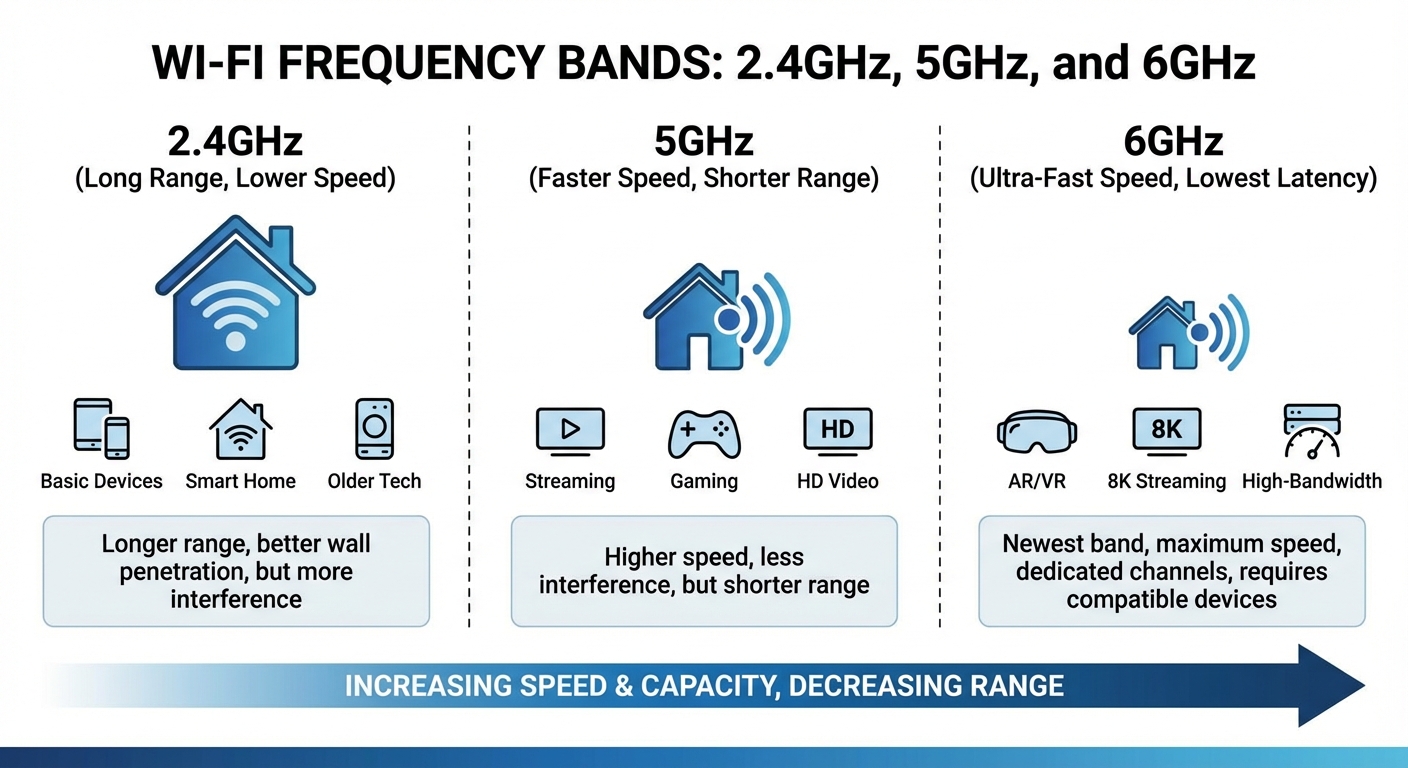

Wireless networking relies on radio frequencies to transmit data between devices. For the CompTIA A+ 1201 exam, you must understand the three primary frequency bands used in modern Wi-Fi networks: 2.4GHz, 5GHz, and 6GHz. Each frequency band has distinct characteristics that affect performance, range, and compatibility with various devices and environments.
The choice of frequency band directly impacts network performance. Lower frequencies travel farther and penetrate obstacles better, while higher frequencies offer faster speeds but with reduced range. Understanding these trade-offs is essential for both the certification exam and real-world network troubleshooting.
Key Concepts to Understand
Frequency: Measured in Hertz (Hz), frequency refers to how many times a wave oscillates per second. In wireless networking, we use Gigahertz (GHz), which represents billions of cycles per second.
Wavelength: The physical distance between wave peaks. Lower frequencies have longer wavelengths, which allow signals to travel farther and penetrate solid objects more effectively.
Channels: Each frequency band is divided into channels—specific frequency ranges that devices use to communicate. Proper channel selection helps minimize interference between nearby networks.
The 2.4GHz Frequency Band
Overview
The 2.4GHz band was the original frequency used for Wi-Fi and remains widely deployed today. Operating between 2.400GHz and 2.4835GHz, this band is supported by virtually all wireless devices and is associated with the IEEE 802.11b, 802.11g, and 802.11n (Wi-Fi 4) standards.
Channel Structure
The 2.4GHz band contains 11 channels in the United States (13 in most other countries, 14 in Japan). However, these channels overlap significantly. Each channel is 22MHz wide, but channels are spaced only 5MHz apart. This overlap means that only three channels—1, 6, and 11—can be used simultaneously without causing interference. This limitation is a critical concept for the exam.
EXAM TIP: Remember that only channels 1, 6, and 11 are non-overlapping in the 2.4GHz band. This is frequently tested on the A+ exam.
Advantages
- Superior range: The longer wavelength allows signals to travel farther, typically 150+ feet indoors
- Better wall penetration: Signals pass through walls, floors, and other obstacles more effectively than higher frequencies
- Universal compatibility: Supported by virtually all Wi-Fi devices, including older hardware and IoT devices
- Lower cost: Equipment is generally less expensive due to mature technology
Disadvantages
- Limited bandwidth: Maximum theoretical speeds of 600 Mbps with 802.11n (typically 50-150 Mbps in practice)
- High interference: Shares the frequency with Bluetooth, cordless phones, baby monitors, microwaves, and many other devices
- Network congestion: Only 3 non-overlapping channels means crowded environments experience significant interference
- Higher latency: Not ideal for real-time applications like gaming or video conferencing
The 5GHz Frequency Band
Overview
The 5GHz band operates between 5.150GHz and 5.825GHz and was introduced with the 802.11a standard. It gained widespread adoption with 802.11n (Wi-Fi 4) and became the preferred band for high-performance applications with 802.11ac (Wi-Fi 5) and 802.11ax (Wi-Fi 6). The higher frequency enables significantly faster data transmission speeds.
Channel Structure
The 5GHz band offers substantially more channels than 2.4GHz—up to 25 non-overlapping channels in the United States. Channels can be 20MHz, 40MHz, 80MHz, or even 160MHz wide. Wider channels provide higher throughput but reduce the number of available non-overlapping channels.
